Visual Basic Online Courses DataGridView Add Edit Delete

November 19, 2011

VB .NET DataGridView Add Edit Delete

Manipulate DataGridView from Visual Basic 2010 with SQL Server

DataGridView Add, Edit, Delete From Database

Visual Basic Online Course - DataGridview SQL Server Database

Note :

If you don't know how to work SQL Server With VB .NET : You need to see this then this

Logic

Using DataGridView Control In VB .NET to Add New - Edit - Delete from/to SQL Server Database or MS-Access or any other Database type. You will find in the end of the lessons the project to download along with source code .

Design

1) Create a new Visual Basic project (Windows Application) name it as (MyDg1) and save it to your hard drive.
2) Place a DataGridView Control on the Form1.
3) Create SQL Server Database file, name it (MyDB)
4) Create Table, name it (Kinds) with just one record, name it (Kinds)
5) Rename the DataGridView Control's name From (DataGridView1) to (DG1)
6) Save/Build the project .
7) Now you have: A project such as this one in the 3 photos (from inside VB .NET and from Outside)

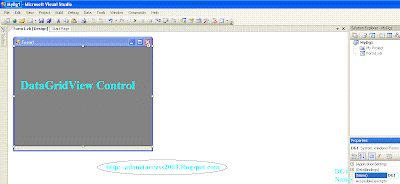

vb.net DataGridView Project From Inside VB.Net 2005

DataBase (MyDB) & Table (Kinds) From Inside SqlServer

Project Folder on Desktop With Database Inside

- What do we want to do ?!!!!

we want to update the database (MyDB) Table (Kinds) Record (Kind) using DataGridView (DG1) From MS Visual Basic .Net 2005 on WinXpSp2 Home Edition ........ ahahahaha ok?!!

We will use NO buttons, we will only use DG1 Events :

1) For Adding New Record : you type in the cell in the dg1 and hit Enter Key

2) For Editing : you Edit a cell that already have been saved and hit enter
3) For Deleting : you Select a cell in the DG1 and you hit Delete key in the keyboard .

* Of course you can not add Empty Values because we have the record (Kind) is Primary Key (PK) .
* You can not Delete the (New DG1 Row) ...

All you have to do now is to open the Form1 Code and Clear all lines using (Ctrl+A) and (BackSpace) then Save Project (Ctrl+S) then Paste (Ctrl+V) these blocks of Codes :

Codes above works 100% just create the database and the table and the record successfully,

vb.net Datagridview source code download

The example tested with vb2010

Download Full Example : MediaFire.com Link

Function to Fill DataGridView with Table using DataTable

	'Visual Basi .Net Class
	Imports System.Data.OleDb
	Public Class FillDataGridView
	Public Shared Function FillDataGridFromTable(TableName As String) As DataTable
	Dim SqlStr As String = ("SELECT * FROM [" & TableName & "]")
	Dim MY_CONN_STR As String = MY_CONNECTIONSTRING_FROM_CONFIGFILES
	Using MyTable As DataTable = New DataTable
	Try
	Using Conn As New OleDbConnection With {.ConnectionString = MY_CONN_STR},
	CMD As New OleDbCommand(SqlStr, Conn)
	Conn.Open()
	Using MyReader As OleDbDataReader = CMD.ExecuteReader
	MyTable.Load(MyReader)
	End Using
	End Using
	Catch ex As OleDbException
	MsgBox(ex.Message)
	End Try
	Return MyTable
	End Using
	End Function
	End Class
	'Visual Basic .Net Form
	Imports System.ComponentModel
	Public Class Form1
	'Visual Basic Controls on Form (Button, TextBox, DataGridView)
	Private Sub ButtonFill_Click(sender As Object, e As EventArgs) Handles ButtonFill.Click
	Dim ThisTable As String = TableTextBox.Text
	With DataGridView1
	.AllowUserToAddRows = False
	With .ColumnHeadersDefaultCellStyle
	.Alignment = DataGridViewContentAlignment.MiddleCenter
	.BackColor = Color.LightGray
	.ForeColor = Color.DarkBlue
	End With
	.EnableHeadersVisualStyles = False
	.DataSource = DatabaseSettings.FillDataGridFromTable(ThisTable)
	End With
	End Sub
	End Class

view raw Datagridview.vb hosted with ❤ by GitHub

Resize Image in DataGridView

	'Visual Basic Form
	'Form1 (DataGridView1)
	Public Class Form1
	Private Sub DataGridView1_CellFormatting(sender As Object, _
	e As DataGridViewCellFormattingEventArgs) Handles DataGridView1.CellFormatting
	If e.RowIndex = -1 Or e.ColumnIndex = -1 Then Exit Sub
	Dim Col_Name as String = ("ImageCol")
	Try
	If Not IsNothing(e.Value) Then
	If DataGridView1.Columns(e.ColumnIndex).ValueType = GetType(Byte()) Then
	Dim imageColumn = DirectCast(DataGridView1.Columns(Col_Name), DataGridViewImageColumn)
	imageColumn.ImageLayout = DataGridViewImageCellLayout.Zoom
	End If
	End If
	Catch ex As Exception
	MsgBox("Error Display Image : " & ex.Message)
	End Try
	End Sub
	End Class

view raw Datagridview_Resize_Image.vb hosted with ❤ by GitHub
